2. Dashboard

2.1. Transaction Monitor

Transaction monitor is available at the top of the page for general statistics:

This monitor contains the following blocks:

Turnover	The sum of all successful sale, capture, reversal (refund) and transfer operations
Declined, filtered and verify	The number of operations of the aforementioned types with the corresponding status
Chargebacks	The number and amount of successful chargeback and prearbitration operations
Frauds	The number and amount of successful fraud operations
Reversals	The number and amount of successful reversal and void operations

To view the analytics detailed by each payment method, click the pointer on the right side of the relevant block:

2.2. Analytics

Data Scope

To change the range of statistics, use the switches:

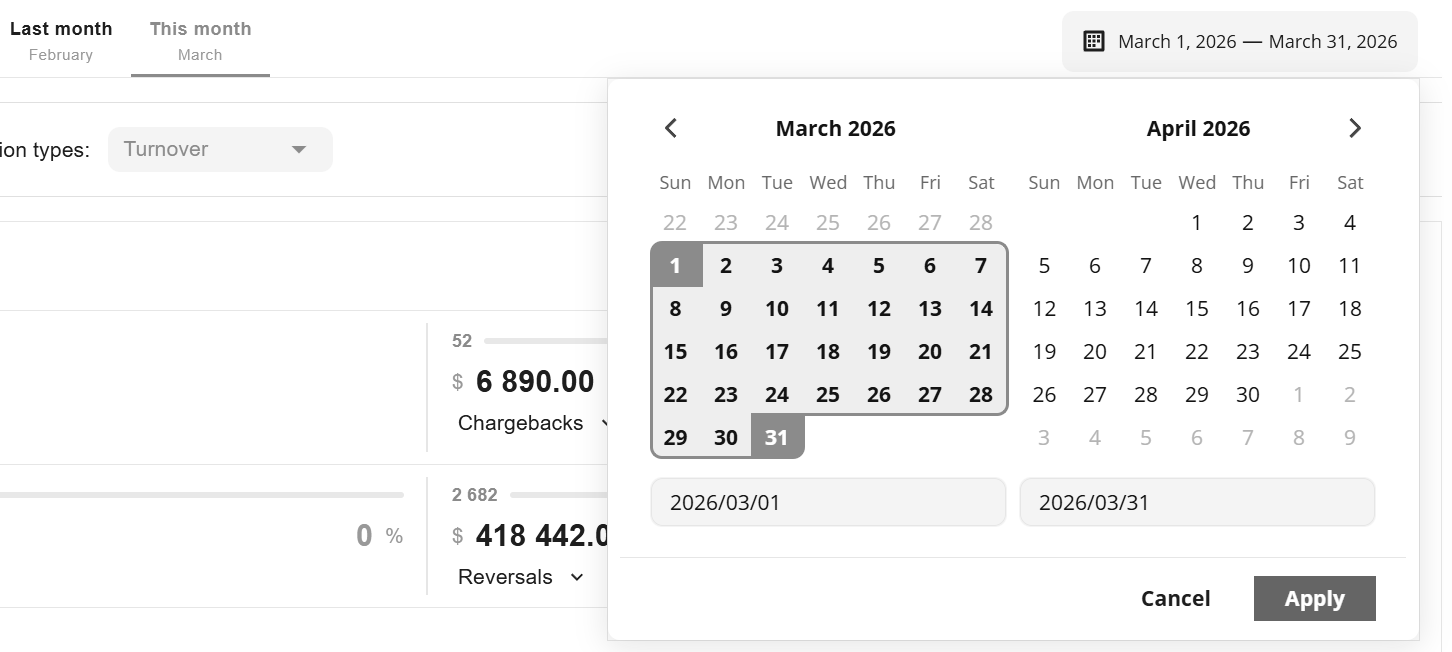

Set the desired date range in the pop-up calendar:

Data for graphs can be sorted using the Criteria button:

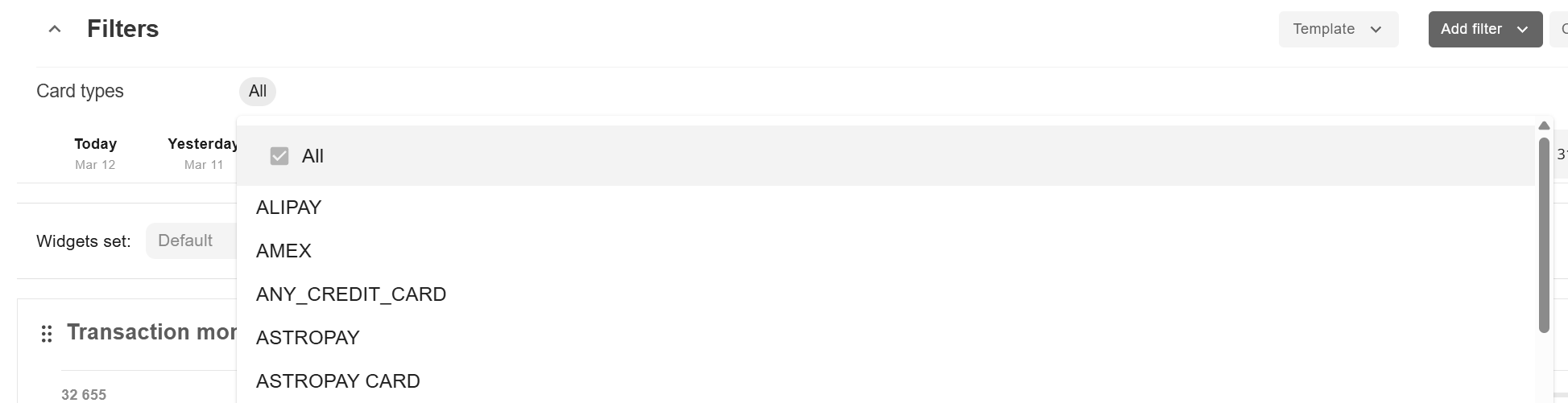

Currencies, payment methods, as well as endpoints, projects and other data can be specified for analysis. Here is the example of the payment method selection to construct the chart:

Turnover

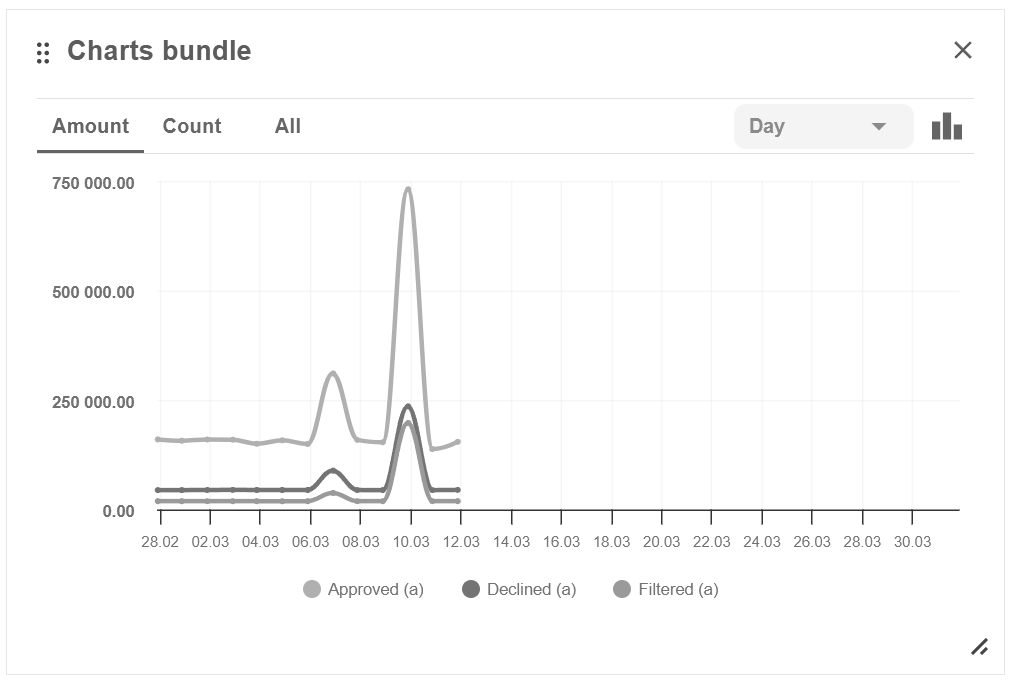

Ratio of successful, rejected and filtered by the system transactions are displayed in the following graph:

The following graphs can be also selected by pressing the button: the ratio by volume of transactions or by amount of payments, as well as by type of transactions (sale, capture, transfer, etc). Payneteasy Payment Gateway also displays statistics on negative activity and earnings.

Required time period is set by schedule switch (day, week, month):

Type of chart (amount, count, all) can be changed using the button:

Approval Ratio

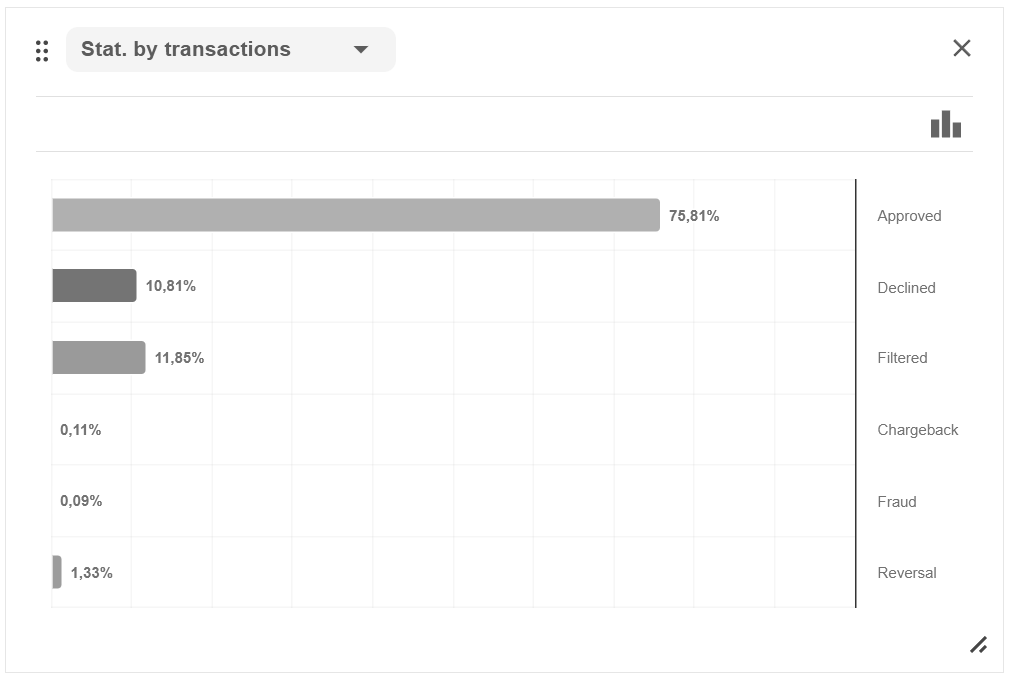

The graph shows the proportions between successful, declined and filtered transactions for a selected period of time.

Payneteasy Payment Gateway also displays statistics per card payment system, per currency, as well as per payment method.

Successful Transaction Analytics for the specified period are displayed as follows:

Transactions By Country

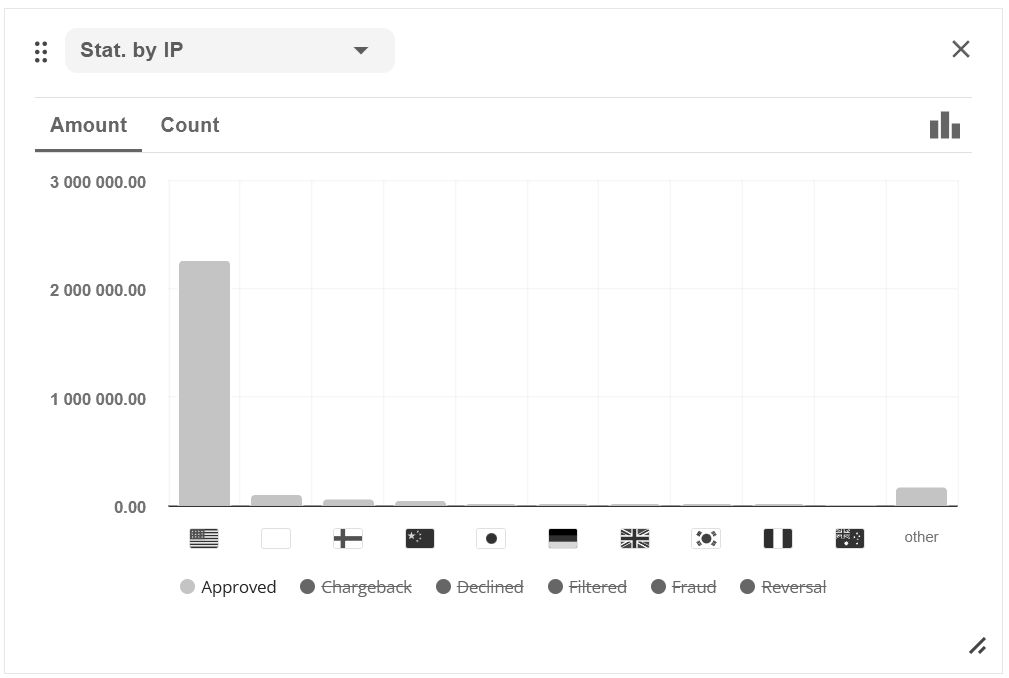

Overview of analytics by country displays two types of regional statistics: based on customer IP addresses and on card BINs.

Transaction Decline Reasons

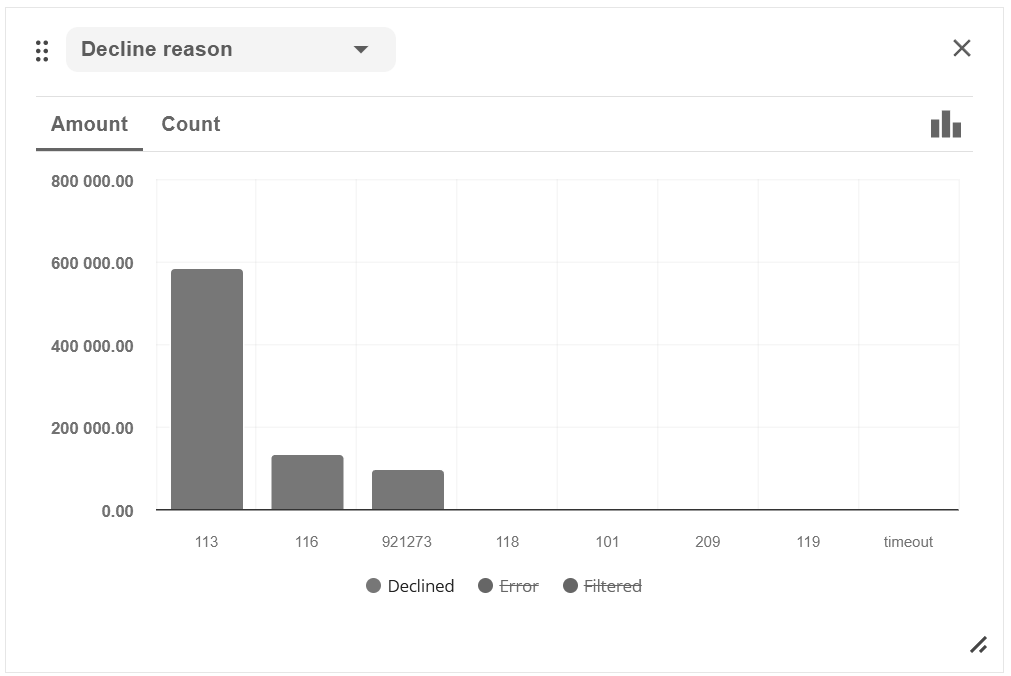

This statistics screen can be used for a visual assessment of the most frequent decline reasons, as well as chargeback and fraud reasons.

2.3. Quick Actions

Frequently used functions can be accessed at the bottom of this page:

This block also displays current statistics on the status of transactions:

To browse transactions with the selected status, click on the Show button:
